Formula Fields

A formula custom field's value is automatically calculated by Celoxis based on its formula. The value is calculated every time the field is rendered. The formula expression language is sophisticated so you can perform complex data manipulations including arithmetic, string and date transformations.

Syntax

Celoxis treats anything between ${ and } as expressions. Formulas can be either defined as pure expressions e.g. ${me.budget * 0.10}, or contain a mix of text and expressions as The project ${me.name} was created on ${me.created} when anything enclosed in ${ and } is treated as an expression and evaluated, while everything outside it is copied to the output verbatim as is. For the curious, if the formulae were attached to a project whose name was XYZ and budget was $10,000 the output would be 1000 and The project XYZ was created on Thu Jun 20 08:30:16 EDT 2013 respectively.

The dot operator

The dot operator is used to reference a property of an object. In the example ${me.budget * 0.10}, the me.budget refers to the project's budget if the custom field is attached to a project. The dot operator can also be used to call a function (a.k.a. method) of an object. In the example ${me.name.toUpperCase()}, the toUpperCase is a function call that would transform the project's name to upper case characters.

Operators

Arithmetic: +, - (binary), *, / and div, % and mod, - (unary)
String Concatenation: +=
Logical: and, &&, or, ||, not, !
Relational: ==, eq, !=, ne, <, lt, >, gt, <=, ge, >=, le. Comparisons can be made against other values or against Boolean, string, integer, or floating-point literals.
Empty: The empty operator is a prefix operation that can be used to determine whether a value is null or empty.
Conditional: A ? B : C. Evaluate B or C, depending on the result of the evaluation of A.
Assignment: =
Semicolon: ;

The precedence of operators highest to lowest, left to right is as follows:

[] .
() (used to change the precedence of operators)
- (unary) not ! empty
* / div % mod
+ - (binary)
+=
< > <= >= lt gt le ge
== != eq ne
&& and
|| or
? :
=
;

Reserved Words

The following words are reserved for the EL and should not be used as identifiers:

`and`	`or`	`not`	`eq`
`ne`	`lt`	`gt`	`le`
`ge`	`true`	`false`	`null`
`instanceof`	`empty`	`div`	`mod`

Basic Examples

Formula	Result
`${1 > (4/2)}`	`false`
`${4.0 >= 3}`	`true`
`${100.0 == 100}`	`true`
`${(10*10) ne 100}`	`false`
`${'a' < 'b'}`	`true`
`${'hip' gt 'hit'}`	`false`
`${4 > 3}`	`true`
`${1.2E4 + 1.4}`	`12001.4`
`${3 div 4}`	`0.75`
`${10 mod 4}`	`2`
`${!empty me.code}`	`False` if the object's `code` is `null` or an empty string.

Utility Functions

The following set of helper functions have been provided:

`formatDate(date)`	The formatted value of date (without the time) as per viewer's preferences.
`formatDateTime(datetime)`	The formatted value of date and time as per viewer's preferences.
`formatNumber(number)`	The formatted value of the number as per the viewer's locale.
`formatCurrency(number)`	The formatted value of currency as per the currency specified in the company's preferences and number format as per the viewer's locale. E.g. $25,000
`hoursToHHMM(number)`	Formats the hours in the form HH:MM. For example, 2.5 will result in 2:30

`ceil(number)`	The nearest integer larger than the input. For example ${ceil(5.3)} will return 6
`floor(number)`	The nearest integer smaller than the input. For example ${floor(4.8)} will return 4
`abs(number)`	The absolute value of a number. For example ${abs(-3.2)} will return 3.2
`round(number)`	The rounded value of input. For example ${round(3.6)} will return 4
`roundTo(digits, number)`	The rounded value of input number to the number of digits specified. For example ${roundTo(2, 3.667)} will return 3.67; while ${roundTo(0, 3.667)} will return 4.

`String.contains(haystack, needle)`	Check if `needle` exists in `haystack`
`String.endsWith(string, suffix)`	Check if `string` ends with `suffix`
`String.replace(txt, search, replace)`	Replaces all occurences of `search` in `txt` with `replace`
`String.startsWith(string, prefix)`	Check if `string` starts with `prefix`
`String.trim(string)`	Trims whitespace and control characters from the ends of the `string`
`String.blankIfNull(str)`	If `str` is null, returns a blank string else returns the `str` itself.

`Date.before(date1, date2)`	Returns `true` if date1 is before date2.
`Date.equal(date1, date2)`	Returns `true` if date1 equals date2.
`Date.after(date1, date2)`	Returns `true` if date1 is after date2.
`Date.format(date, format)`	The formatted value of the date as per the format. For supported formats see this.
`Date.hoursBetween(from, to)`	Return the number of elapsed hours between `from` and `to`.
`Date.workingHoursBetween(from, to)`	Return the number of working hours between `from` and `to` based on the company's default work calendar. If the elapsed days between `from` and `to` is more than 30, the elapsed hours is returned.
`Date.plusHours(date, hours)`	Adds `hours` to `date` and returns that date.
`Date.isoToDate(string)`	Converts `string` in ISO format to a date.
`Date.now()`	Returns a date representing the current date and time

`Collection.size(v)`	Returns `size` of v.
`Collection.contains(haystack, needle)`	Check if `needle` exists in `haystack`
`Collection.containsAny(haystack, needles)`	Check if at least one `needle` exists in the `haystack`
`Collection.containsAll(haystack, needles)`	Check if all `needles` exists in the `haystack`

Writing multi-line formulas

To write the formula code on multiple line, use the = and ; operators. The return value is the last statement of the formula. For example:

${
apc = me.actualPercentComplete;
ppc = me.plannedPercentComplete;
(apc - ppc)/ppc
}

Note that the last line of the formula does not have the ; character.

The formula return data type

While defining a formula, you have to select a Formula Data Type. This tells the system what it should expect the formula to return. Celoxis formats the return value automatically based on the data type. For example, if you indicate the return type to be a currency, then if your formula returns a number 10000, the output would be $10,000 i.e. Celoxis automatically formats the number and prefixed it with the company's currency symbol.

Formula fields with Formula Data Type -> Text is sorted in Alphabetical order. So, there is no meaning to the "order" of the options that you define in the formula field. The options will be sorted in the Alphabetical text order for Tabular and Chart reports.

The `me` object

The me object in formula represents the object for which the formula is being evaluated. E.g. let's say that our formula field Client Advance is defined as ${me.budget * 0.1} i.e it represents 10% of the budget. If we have attached this field to both projects and tasks, then while evaluating the formula for a project, the me object would be a project while for a task it would be a task object.

Field reference

To view the list of available fields, click on the Field Reference tab on the add/edit custom field screen. Click on the plus icon to expand the list of available variables for the various entities.

Error handling

When there is an error evaluating a formula, e.g. you passed a number where a string was expected, the output would show ERR!. Move your mouse over it to get a better description of the problem.

Examples

Assume that we have a project with the following data.

Label	Field	Value
ID	id	1234
Name	name	Setting up office space
Start	startCalendar	10 January, 2011
Budget	budget	5000
Estimated Cost	estimatedCost	4000
Actual Cost	actualCost	3800

We'll now look at a few simple examples. We shall assume that the formula is attached to projects and the sample output is for the project described above.

Formula	Output	Comments
`${me.id * 10}`	12340	id is multiplied by 10
`me.id * 10`	me.id * 10	Not enclosed in ${} and hence copied to the output verbatim.
`ID:${me.id}`	ID:1234	Text mixed with an expression
`${me.name + 100}`	ERR!	Cannot perform arithmetic on String type.
`${me.abcd}`	ERR!	`me` does not have a property named `abcd`.
`${formatDate(me.startCalendar)}`	Jan 10, 2011	Formats the start date as per the user's date format style.
`${me.actualCost gt (me.budget*.9) ? 'ALERT' : 'OK'}`	ALERT	An example on how to write if/then/else
`${formatCurrency(me.budget)}`	$ 5,000	Assuming your currency symbol is $
`${round(((me.budget - me.actualCost)*100)/me.budget)}%`	24%	Calculates the % of budget remaining

Advanced Example: Your own schedule health indicator

Let's say that you want to have a schedule health indicator that is based on baselines i.e. the date you actually promised to the customer rather than on the current plan's finish date.

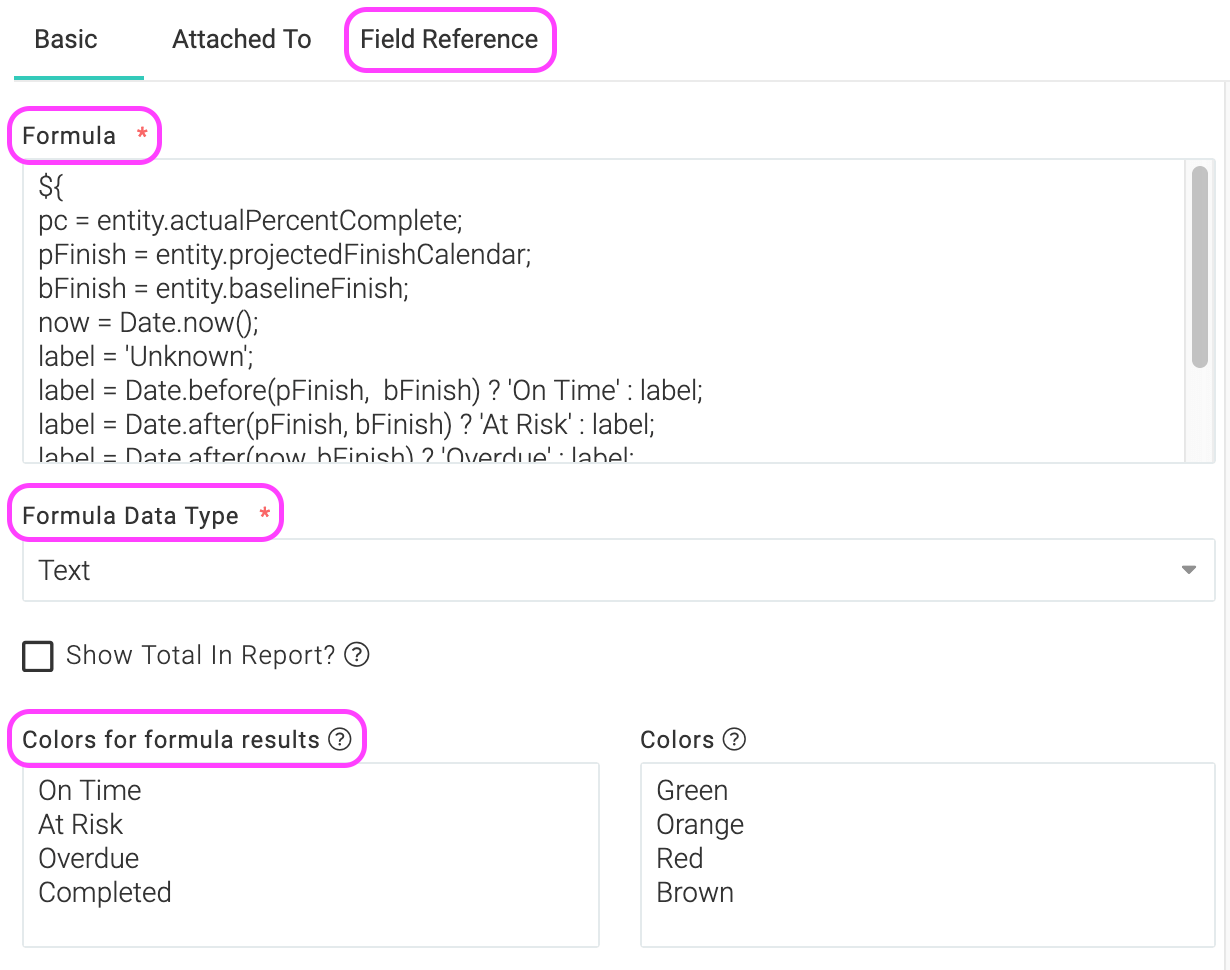

You will create a formula field, attach it to projects, set it's output data type to Text and enter the formula as:

${
pc = me.actualPercentComplete;
pFinish = me.projectedFinishCalendar;
bFinish = me.baselineFinish;
now = Date.now();
label = 'Unknown';
label = Date.before(pFinish,  bFinish) ? 'On Time' : label;
label = Date.after(pFinish, bFinish) ? 'At Risk' : label;
label = Date.after(now, bFinish) ? 'Overdue' : label;
label = pc == 100 ? 'Completed' : label;
label
}

In the Color part of the formula put the mappings as:

Result	Color
`On Time`	`Green`
`At Risk`	`Orange`
`Overdue`	`Red`
`Completed`	`Brown`

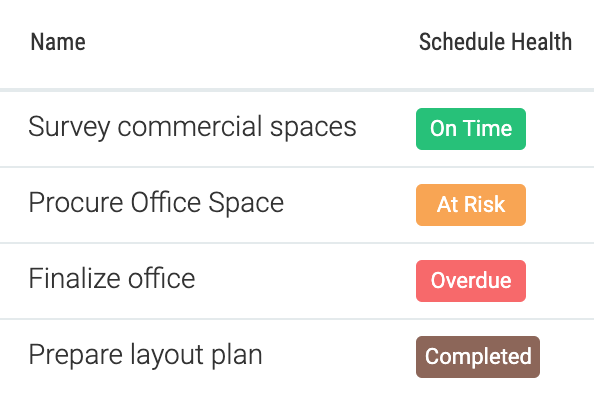

Sample Output
